Electronic centrifugal pumps

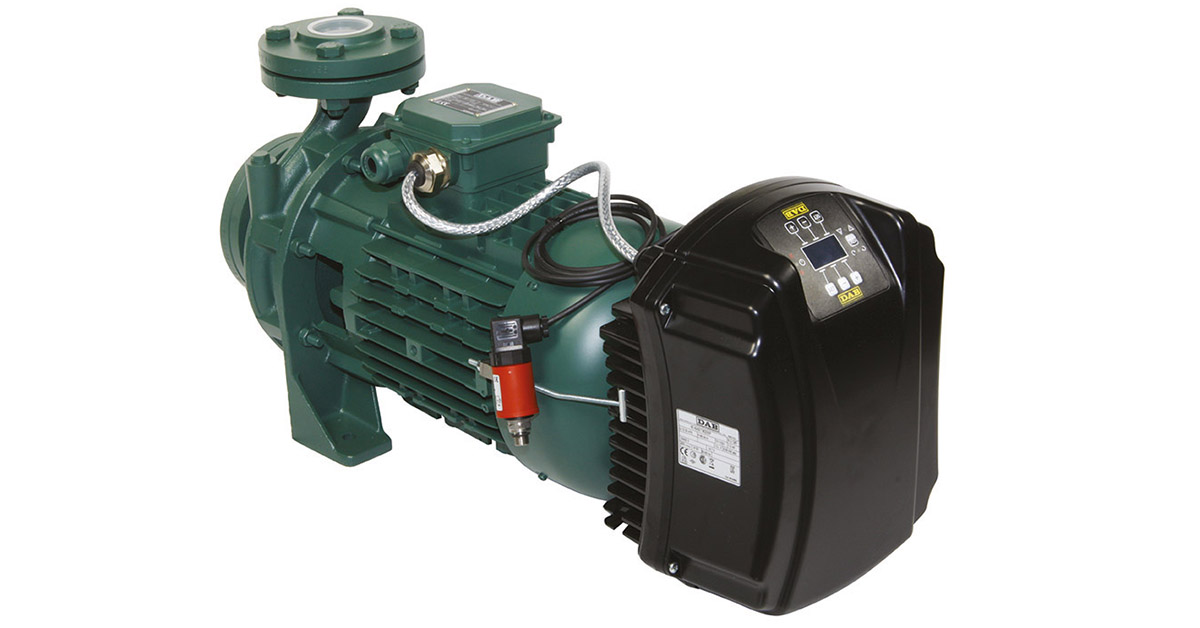

KE Twin Impeller

Description
Download

Double-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels.
Suitable for sprinkler systems and other general water supply uses.

Operating range: from 2 to 30 m3/h with head of up to 95 metres.

Maximum operating pressure: KE 35/40: 6 bar (600 kPa), KE 45/50, KE 55/50: 8 bar (800 kPa), KE 55/100, KE 66/100: 10 bar (1000 kPa), KE 90/100, KE 70/300, KE 80/300 KE 70/400, KE 80/400: 12 bar (1200 kPa).

Installation: normally in horizontal or vertical position, provided that the motor is always above the pump.

Liquid temperature range: from -10 °C to +50 °C: for KE 35/40, KE 45/50, KE 55/100, from -15 °C to +80 °C: for KE 55/50, KE 66/100, KE 90/100, KE 70/300, KE 80/300, KE 70/400, KE 80/400.

Ke double-impeller - technical sheet

Ke double-impeller - instruction

Description

Double-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels.
Suitable for sprinkler systems and other general water supply uses.

Operating range: from 2 to 30 m3/h with head of up to 95 metres.

Maximum operating pressure: KE 35/40: 6 bar (600 kPa), KE 45/50, KE 55/50: 8 bar (800 kPa), KE 55/100, KE 66/100: 10 bar (1000 kPa), KE 90/100, KE 70/300, KE 80/300 KE 70/400, KE 80/400: 12 bar (1200 kPa).

Installation: normally in horizontal or vertical position, provided that the motor is always above the pump.

Liquid temperature range: from -10 °C to +50 °C: for KE 35/40, KE 45/50, KE 55/100, from -15 °C to +80 °C: for KE 55/50, KE 66/100, KE 90/100, KE 70/300, KE 80/300, KE 70/400, KE 80/400.
