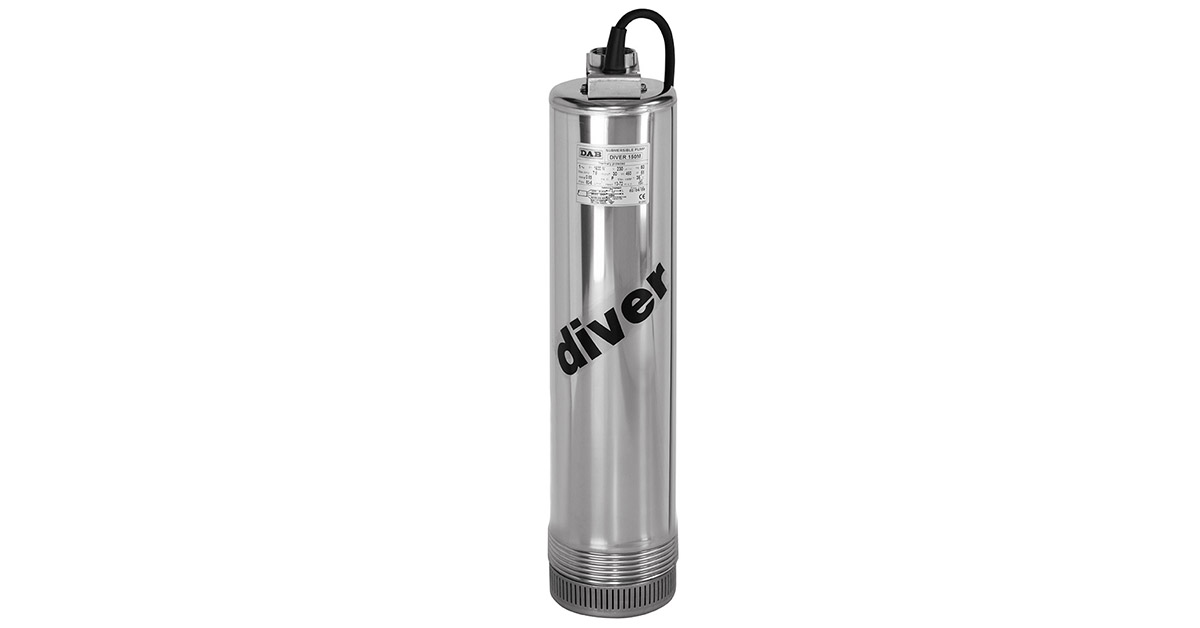

DIVER

Multistage, close-coupled borehole pump with the hydraulic part below the motor. Canned-stator submersible motor, cooled by the flow of pumped liquid. Impellers and diffusers in fiberglass reinforced technopolymer. Outer liner, stator sleeve and upper delivery port made in AISI304 stainless steel.

Max. flow rate: up to 4,8 m3/h.

Max. head: up to 101 mt (depending on the model).

Power range: from 0,55 kW up to 1,5 kW both single-phase and three-phase power supply.

Pump diameter: 127 mm.
