Submersible pumps

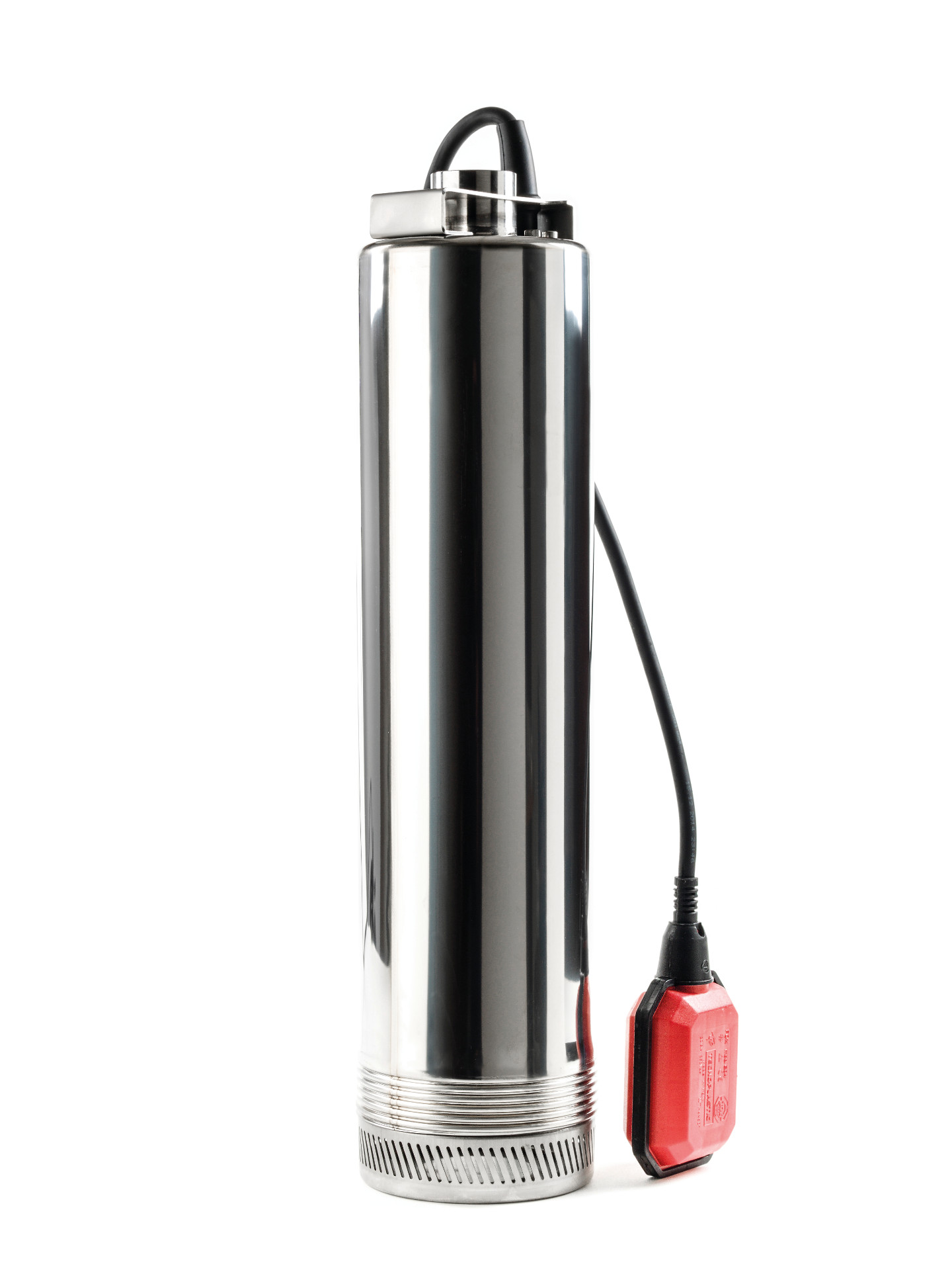

DIVER HF

Description
Download

Multistage, close-coupled borehole pump with the hydraulic part below the motor. Canned-stator submersible motor, cooled by the flow of pumped liquid. High-flow design of impellers. Impellers and diffusers in fiberglass reinforced technopolymer. Outer liner, stator sleeve and upper delivery head made in AISI304 stainless steel.

Max. flow rate: up to 12 m3/h.

Max. head: up to 59 mt (depending on the model).

Power range: from 0,75 kW up to 1,5 kW both single-phase and three-phase power supply.

Pump diameter: 127 mm.

Diver HF - technical sheet

Diver HF - instruction

Description

Multistage, close-coupled borehole pump with the hydraulic part below the motor. Canned-stator submersible motor, cooled by the flow of pumped liquid. High-flow design of impellers. Impellers and diffusers in fiberglass reinforced technopolymer. Outer liner, stator sleeve and upper delivery head made in AISI304 stainless steel.

Max. flow rate: up to 12 m3/h.

Max. head: up to 59 mt (depending on the model).

Power range: from 0,75 kW up to 1,5 kW both single-phase and three-phase power supply.

Pump diameter: 127 mm.
