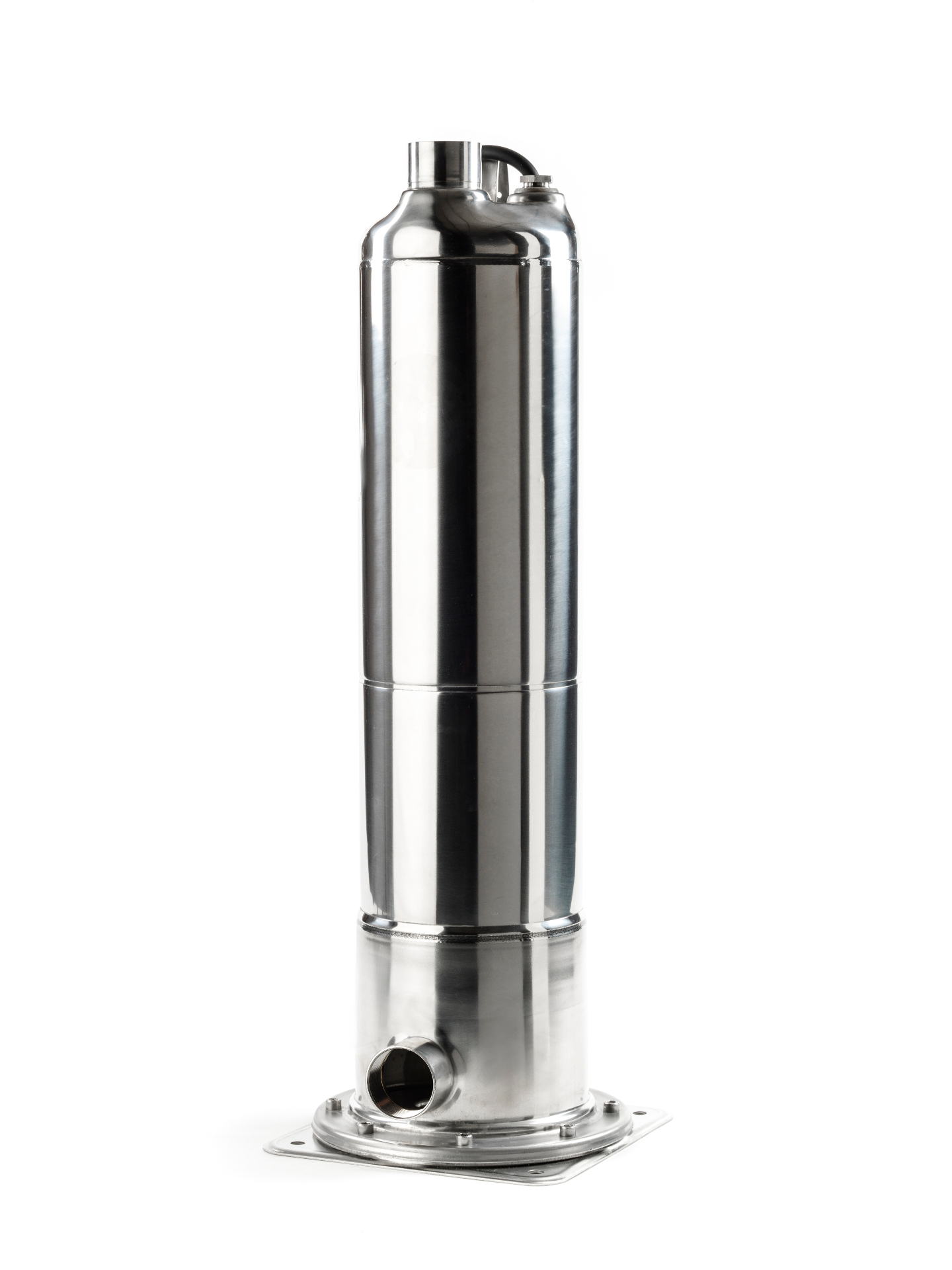

Multistage, close-coupled borehole pump with the hydraulic part below the motor. Submersible electric motor cooled by the flow of pumped liquid and sealed with a double mechanical seal and oil chamber. Impellers and diffusers in abrasion-proof thermoplastic. Outer liner, stator sleeve and upper delivery head made in AISI304 stainless steel.
Max. flow rate: up to 7,2 m3/h (depending on the model).
Max. head: up to 86 mt (depending on the model).
Power range: from 0,55 kW up to 1,2 kW both single-phase and three-phase power supply.
1"1/4 threaded intake and stainless steel baseplate.
